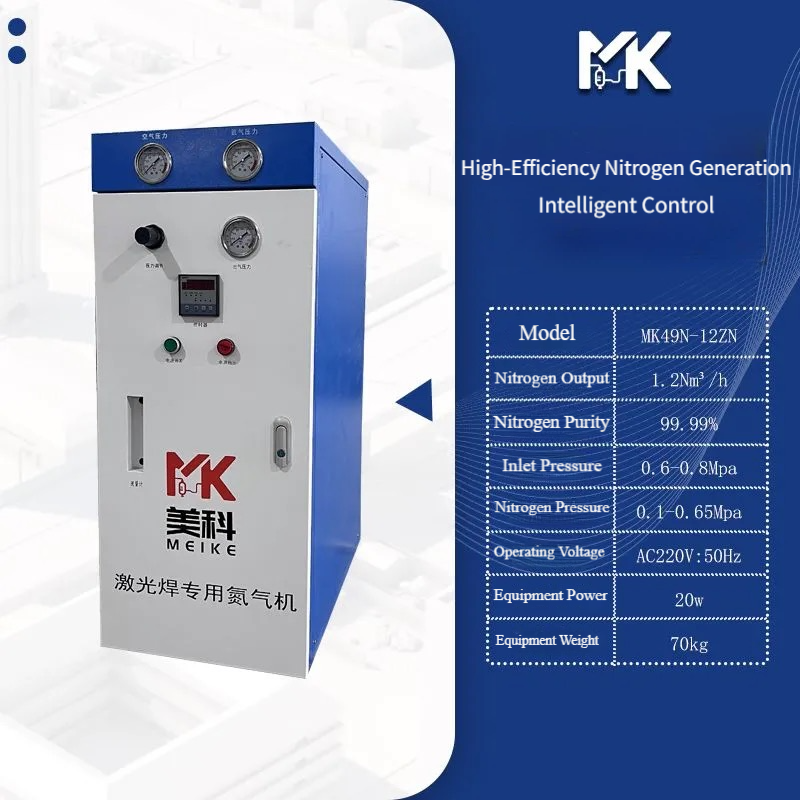

Nitrogen Generator for Laser Welding

Technical Specifications：

Nitrogen Generation Principle: PSA (Pressure Swing Adsorption) / Membrane Separation

Nitrogen Flow Rate: 0.1–2000 Nm³/h (Standard Cubic Meters per Hour)

Nitrogen Purity: 95%–99.9995% (Typical: 99.5%, 99.9%, 99.99%, 99.999%)

Output Pressure: 0.1–0.8 MPa (Boostable to 1.6–35 MPa)

Residual Oxygen Content: ≤5000 ppm (95%) ... ≤1 ppm (99.999%)

Pressure Dew Point: ≤-40°C (Industrial) / ≤-60°C (High Purity)

Feed Air Pressure: 0.6–1.0 MPa

Air-to-Nitrogen Ratio (Consumption Ratio): 2:1 ~ 4:1

Installed Power: 0.5–500 kW (including air compressor)

Power Supply: 380V/50Hz (Industrial); 220V (Small-scale)

Control Method: Fully automatic PLC, Touchscreen, Remote monitoring

Operating Temperature: 5–45°C

Equipment Material: Carbon Steel / 304 Stainless Steel

Dimensions/Weight: Customized based on model
